Kingroon KLP1 CoreXY 3D Printer - Klipper Firmware Installed

Name: Kingroon KLP1 CoreXY 3D Printer - Klipper Firmware Installed
Brand: Kingroon 3D
SKU: 3D033-D
Price: 379.0 USD
Availability: InStock

$379.00

Warehouse

to Japan

Optional

Touch screen version

Quantity

Kingroon KLP1 is a fast-print-speed CoreXY 3D printer with Klipper firmware and a protective enclosure. With Klipper firmware features, Kingroon KLP1 let people print at high speed and with great quality.

· All-in-one Klipper Mainboard

Kingroon KLP1 has a powerful mainboard with Klipper firmware installed. No Raspberry Pi is required.

· 500mm/s High-Speed Print

High-quality print with less waiting time. Kingroon KLP1 has 500mm/s high-speed printing & 10000mm/s² acceleration. The built-in ADXL345 module ensures you high-quality print under fast print speed with active vibration compensation.

· CoreXY Structure & Linear Rail Guides(X&Y axis)

Kingroon KLP1 is a CoreXY 3D Printer with linear guides on the X-axis and Y-axis, which makes the printer accurate, fast, and durable during fast movement.

· 5:1 Gear Ratio

5:1 Gear Ratio, all metal, 9500 rings 5015 bearing fan, CHC hotend, smart microprocessors, the new extruder means powerful extrusion and better cooling system.

· Advanced All-metal Hotend

Featuring an all-metal hot end with a ceramic heating core, the KLP1 enables a wider range of material options, including conventional materials like PLA, ABS, PETG, TPU, and wood but also high-temperature materials like nylon and CF.

· Easy Access with Multi Interface Options

With the Internet connection, any screen can be your printer screen, you can control Kingroon KLP1 anyhow, anytime and anywhere.

· Auto Bed Leveling

The auto bed leveling comes to Kingroon KLP1, with its new bed structure, it’s fully ABL.

KLP1 Features

All-in-one Klipper Mainboard

No Raspberry Pi is required

High-Speed Print

350mm/s high-speed printing & 10000mm/s² acceleration

Linear Rail Guides(X&Y axis)

Accurate, fast, and durable during fast.

Auto Bed Leveling

new bed structure, it’s fully ABL.

5:1 Gear Ratio

5:1 Gear Ratio, 9500 ring 5015 bearing fan

WIFI module

Control printer remotely

All-Metal Extruder

Fast heating and high-speed extrusion

Auto-leveling

Compensate for platform differences and reduce manual leveling time

5:1 Gear Reduction

Double gear extrusion structure, 5 times the extrusion ratio, greater extrusionforce

300 °C all metal hot end

Supports a maximum temperature of 300°Cpaired with a high-speed ball fan to ensure rapid cooling and molding of the model

About Klipper

Klipper is a 3d-Printer firmware. It combines the power of a general purpose computer with one or more micro-controllers

High precision stepper movement
Supports "Smooth Pressure Advance"
Supports printers with multiple micro-controllers

Best in class performance
Configuration via simple config file
Supports "Input Shaping" to reduce the impact of vibrations on print quality

Bed leveling
Auto-leveling & Vibration compensation Tutorial
High-Speed KLP1 3D Printer
Klipper Firmware Installed

How to replace the KLP1 motherhoard?
Mainboard Replacement Tutorial

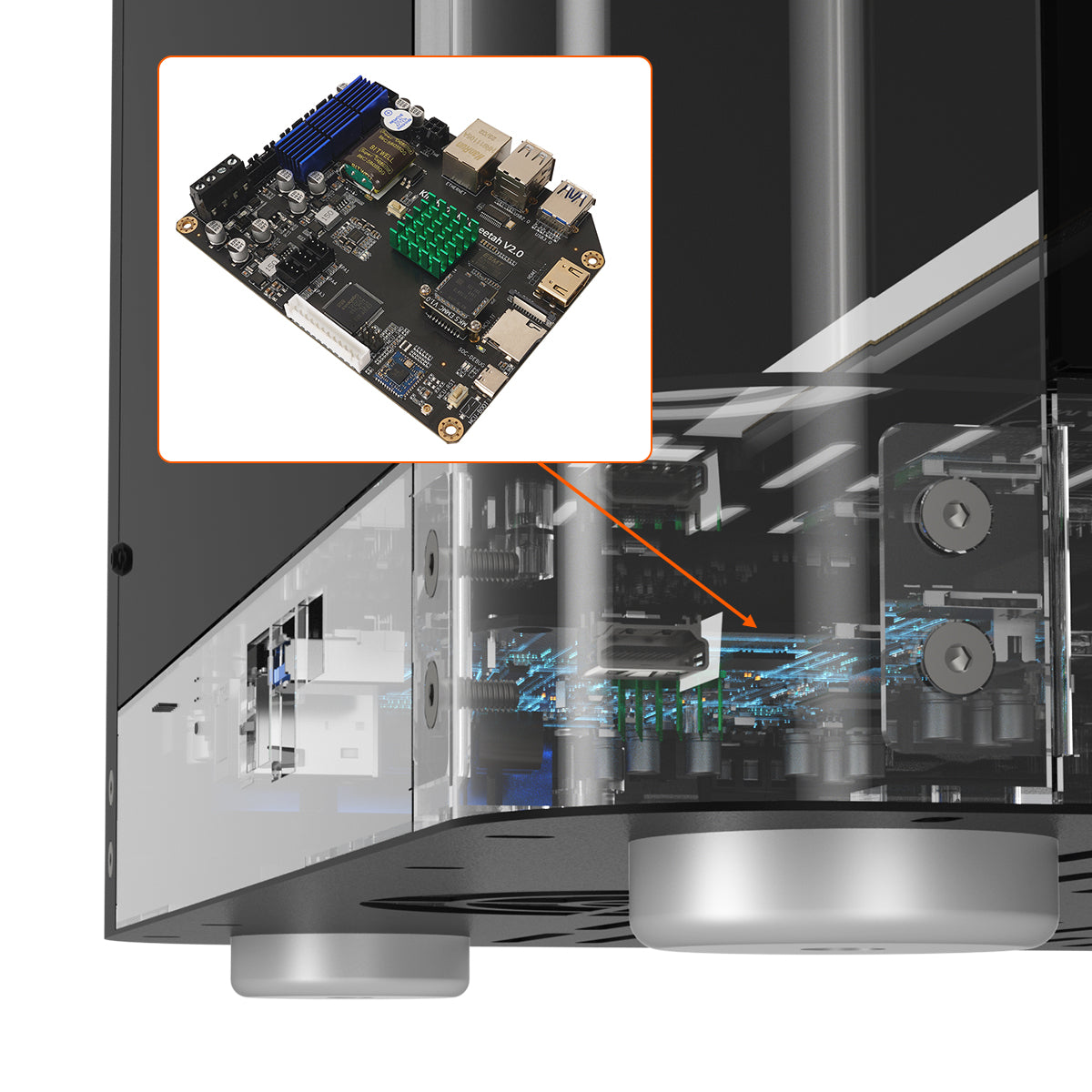

All-in-one Klipper Mainboard

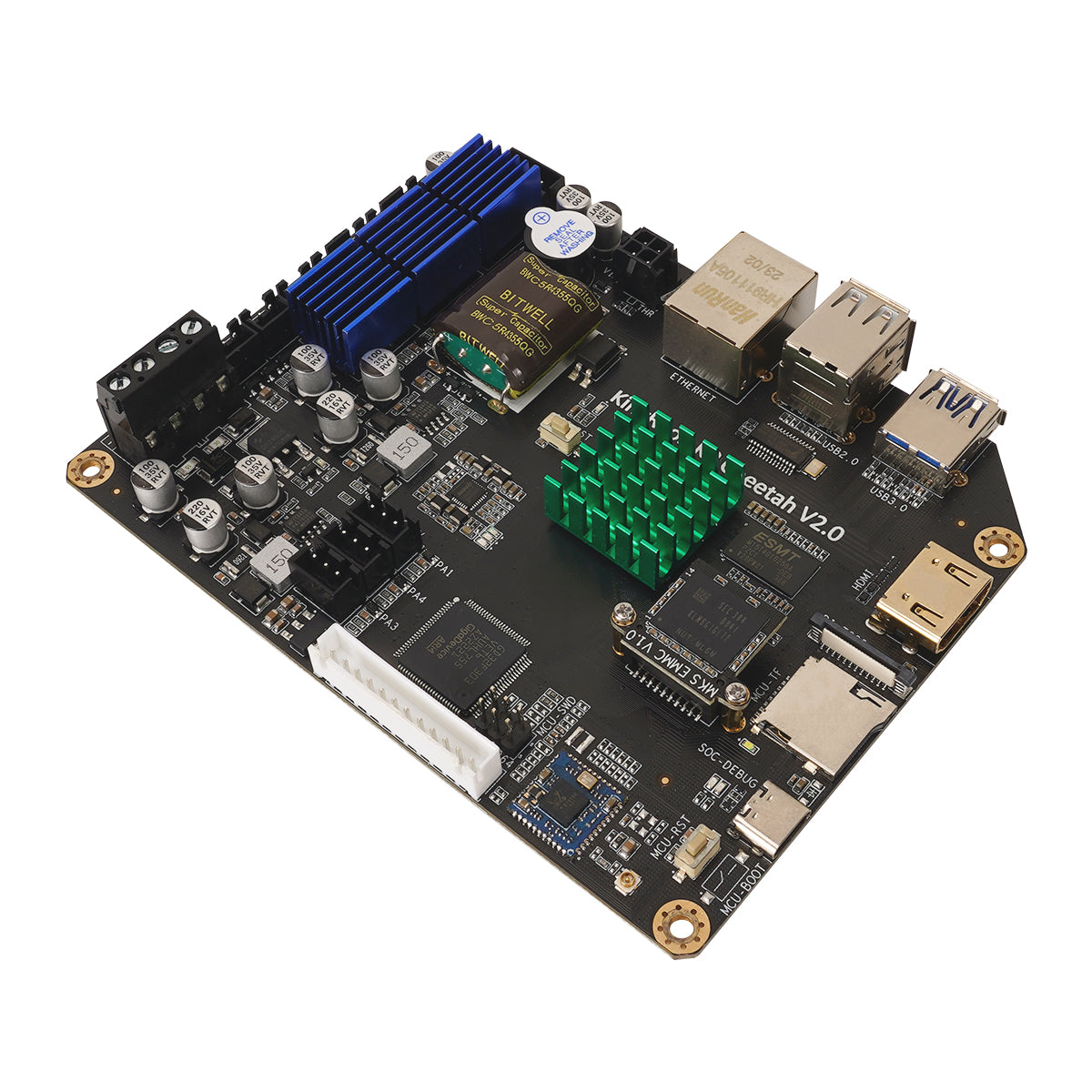

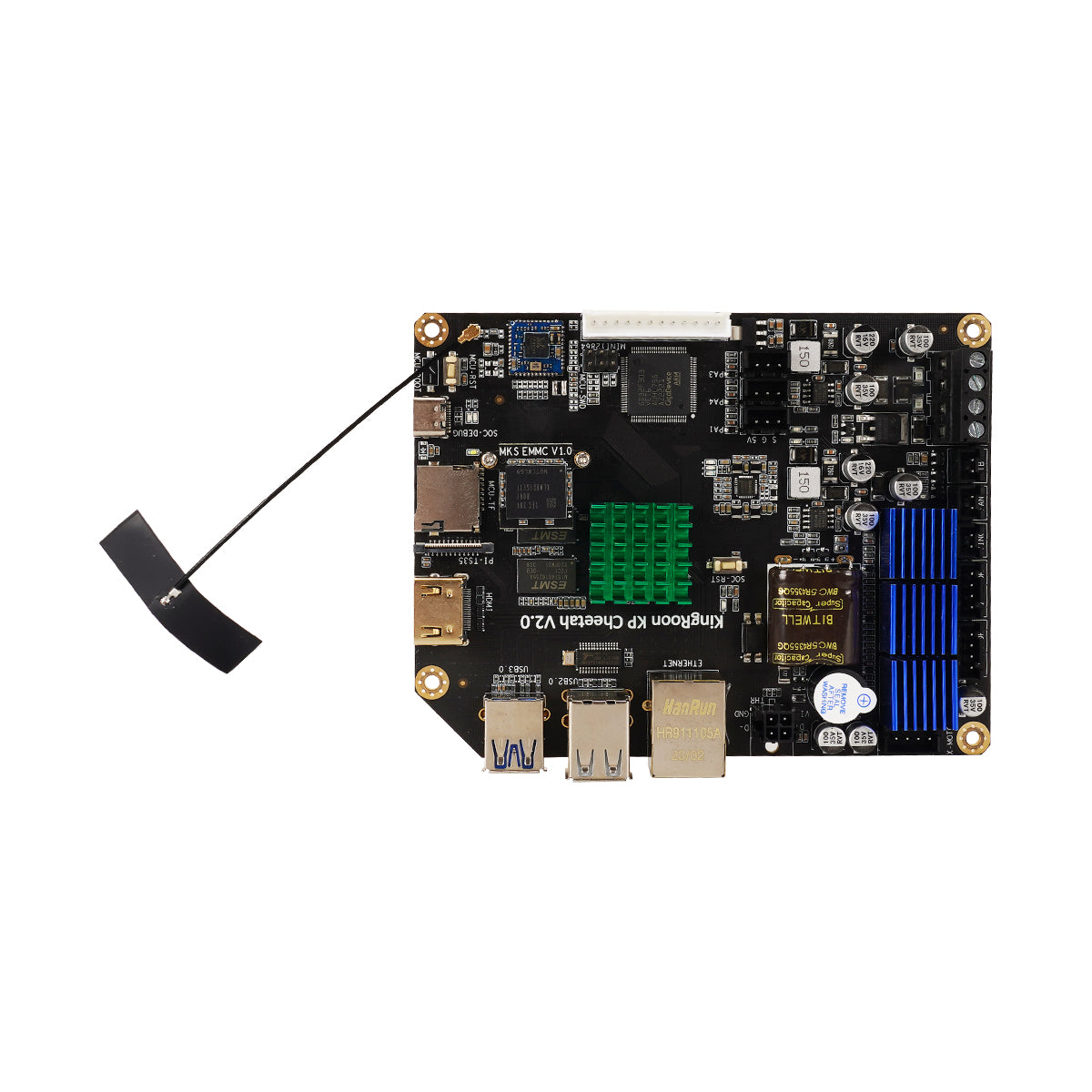

Cheetah V2.0 Mainboard for KLP1 3D Printer

KLP1 Speedy 3D Printer

Printing Technology: FDM
Build Volume: 210*210*210mm
Product Dimensions: 400*420*420mm
Package Dimensions: 422*492*72mm
Net Weight: 15.72kg
Printing Speed: ≤500mm/s
Acceleration: ≤20000mm/s²
Firmware: Klipper
Printing Accuracy: 100±0.1mm
Layer Height: 0.1-0.35mm
Extruder: Dual-gear direct drive extruder
Filament Diameter: 1.75mm
Nozzle Diameter: 0.4mm（compatible with 0.6/0.8mm）
Nozzle Temperature: ≤300℃
Heatbed Temperature: ≤100℃
Build Surface: Flexible build plate
Leveling Mode: Hands-free auto leveling
File Transfer: USB drive, WiFi
Power Loss Recovery: Yes
Filament Runout Sensor: Yes
Input Shaping: Yes
Lighting Kit: Yes
Sleep Mode: Yes
Machine Power: 240W
Input Voltage: 110V-220V
Power Supply: 24V12.5A, 300W
Filaments: ABS, PLA, PETG, TPU, WOOD, ETC.
Feeder System: Direct Extruder
Print Bed: Heated bed with PEI Sheet
File Formats for Slicing: STL, OBJ, AMF
Languages: English, Spanish, German, French, Russian, Portuguese,
Italian, Nederlands, Turkish, Japanese, Korean, Chinese

FAQ

Files Download

Kingroon KLP1 System Image

Kingroon KLP1 Cura Settings

Kingroon KLP1 USB Content

Good but could be better

The printer is very good and very fast, but the Kingroon service overall should be improved and there are minor things on the printer from the software side that still have to be fixed. Also, they should have more availability in their EU warehouse. I have a new KLP1 and I cannot use it because I am waiting for a replacement part to come from China and it takes weeks.

Almost "Plug and Play" Like a Double size Voron 0 at half the price and 95 % of build is complete

Gave 4 stars, cause I had a few problems
1- you do have to put on the knobs (confusing, because the knob came with a long screw which was too long, but you should use a smaller screw that is in a different package
2- instructions don't tell you that the very long PTFE tube should hook into the runout sensor, so I cut it down and then ordered another one to make it correct
3- did the setup steps, and when you tell it to home at xy it is slamming the head against the frame ie beating itself up I did contact support after a day they emailed me back and said tighten the belts, I did and then put some green locktite on the adjustment screws and that fixed the problem

1- Left side plastic panel was broken in one corner, NOT Kingroon fault as their was a dent in the outside of the shipping box, they said they would send a replacement
